Fretwork and end plates
I do the usual stuff: modify the ends of a 30 button Jeffries to make them fit the vertical English concertina rows:

GCIR0637 2

No - it’s not a CAD program. It’s a Macintosh vector program called Intaglio.

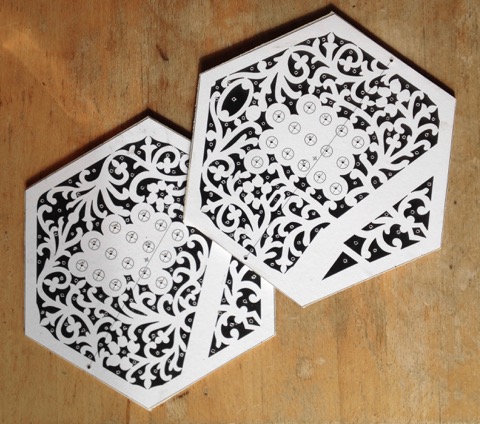

Print, glue, drill...

IMG_3406

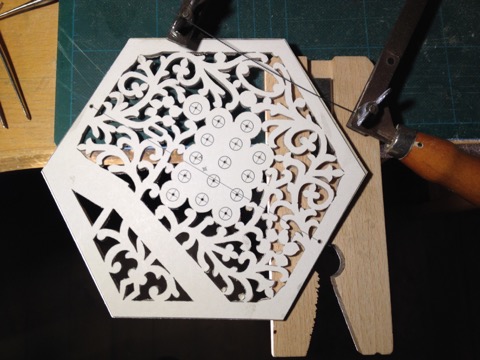

Pierce, saw, pierce, saw, pierce...

IMG_3407

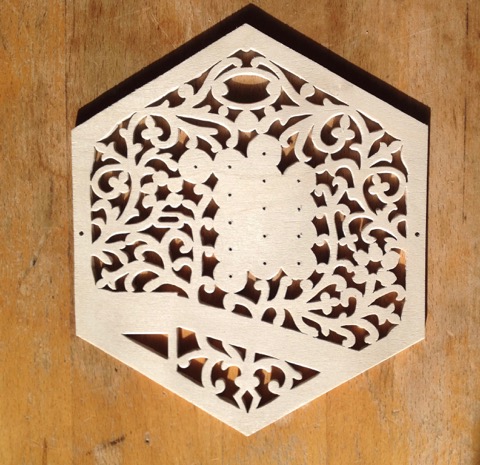

One down, one to go...

IMG_3409

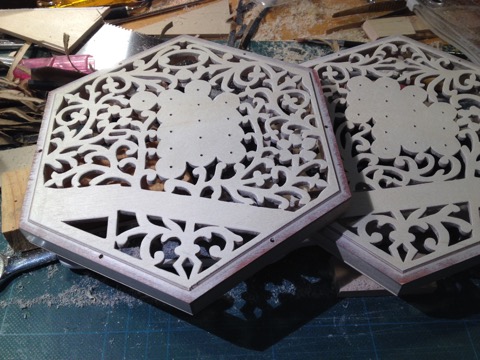

Glue onto frames and rout the bevel. Now I only need a special drill/router for the end bolt heads - Roy (page 4, "Credits") is the man for that.

IMG_3424
